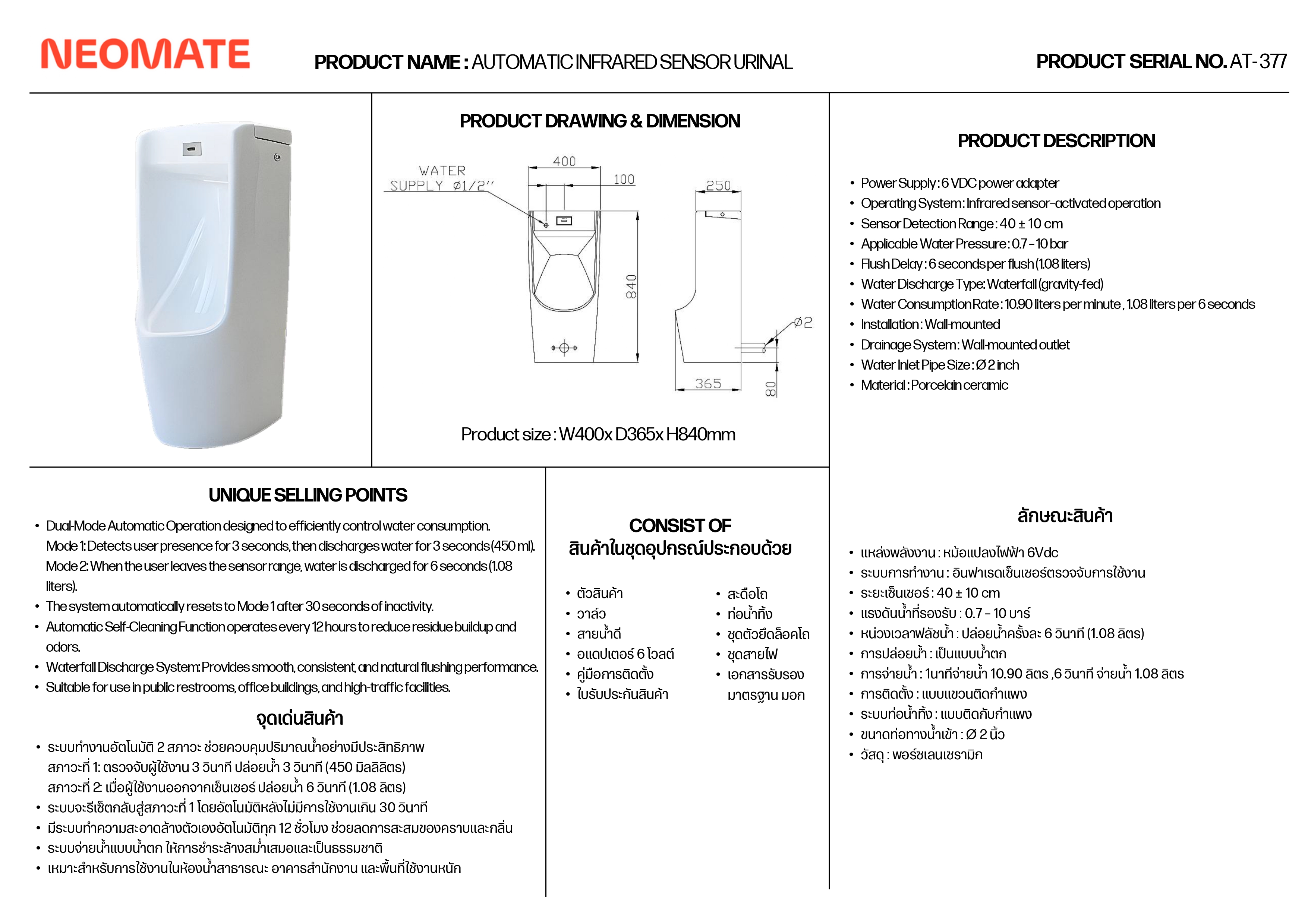

SPECIFICATION AT-377 (Uninal Integrate Flush Valve)
| Power | : Adapter 6Vdc |
| Working | : The system's infrared sensor function. |
| Functions conditions 1 | : Stand for 3 seconds and then release the water sensors 3 seconds. (0.33 liter.) |
| Functions conditions 2 | : When the sensor is out of the water 6 seconds. (0.66 liter.)After about 30 seconds to go. Going back to the first state. |
| Range | : 40± 10 cm |
| Water pressure from | : 0.7 – 10 Bar. |
| optional features | : The cleaning itself every 12 hours. |
| Delay flushing water | : Water 6 times per second. (0.66 liter.) |
| Nozzle | : A spray nozzle Cleaning. |
| installation | : installation |
| Sewer Outlet | : Wall Mounted. |
| Pipe Fitting | : Ø ½ “ PJ Water inlet |
| Water supply | : 1 min 6.33 a liter, six seconds, 0.66 liters of water (at 1.0 bar). |
| Material | : Porcelain ceramics. |

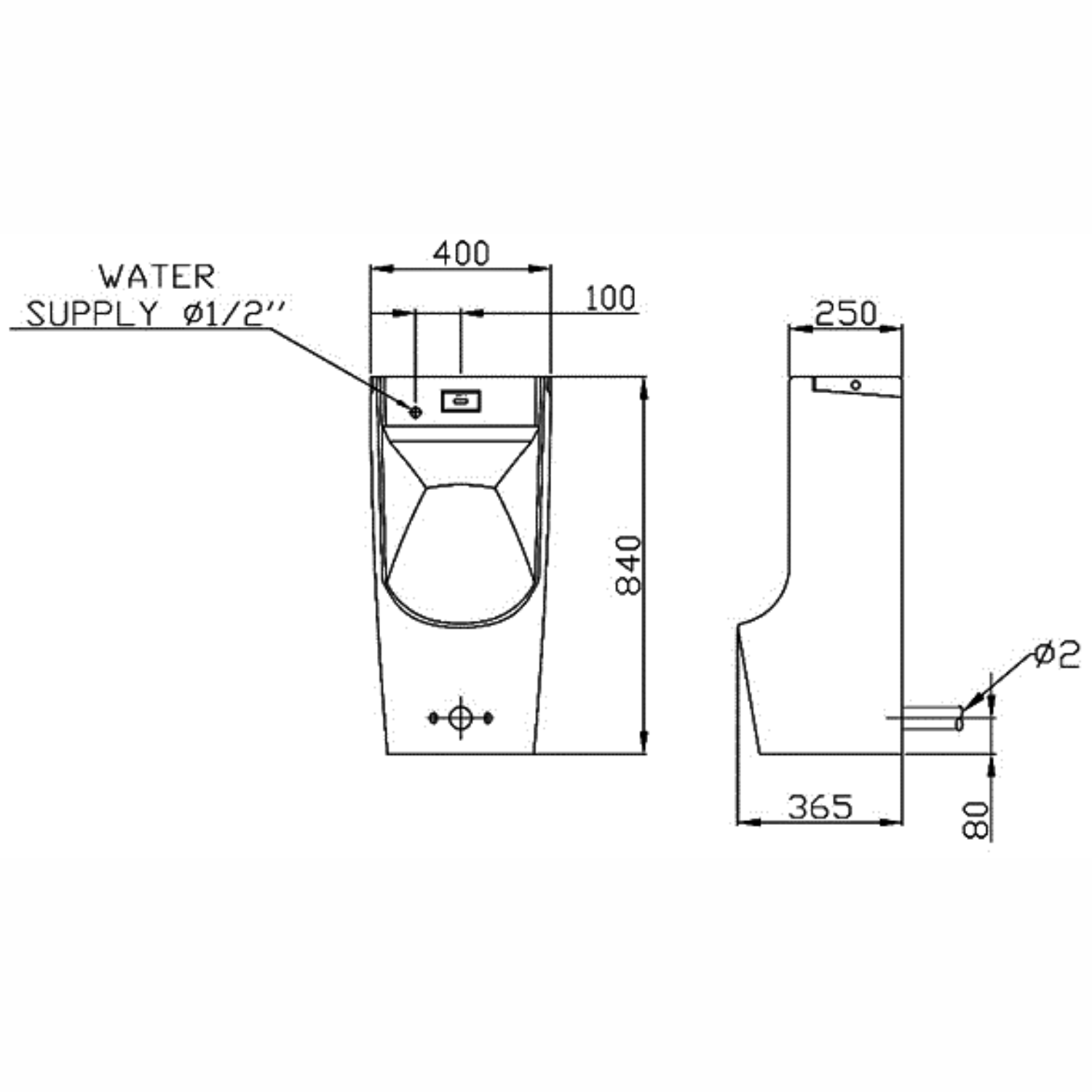

| Urinal Dimension | : 400 x 365 x 836 มิลลิเมตร |
| Total size Urinal box | : 450 x 380 x 900 มิลลิเมตร |
*** Green Label requirements for urinal flush valves, driving the nominal size 15 (size ½ inch water pipe) to a flow rate of up to 1.6 liters of water at pressure 0.15 ± 0.01 MPa (1.5. bar)
*** Testing Standards Institute's Automotive AT-377, our water is up to six times per second, or 0.66 per liter cheaper than the standard set up to 0.94 liters.
